Laser Cutting Machine Vs Plasma Cutting Machine: Which Is Better?
I. Introduction
Laser cutting and plasma cutting are two widely used technologies in the manufacturing and fabrication industries. Both methods offer distinct advantages and are chosen based on the specific requirements of the task at hand.
In this comprehensive comparison, we will delve deep into the world of laser cutting machine vs plasma cutting machine. We'll explore their fundamental principles, analyze their respective advantages and disadvantages, and provide you with the knowledge necessary to choose the right cutting technology for your specific applications.

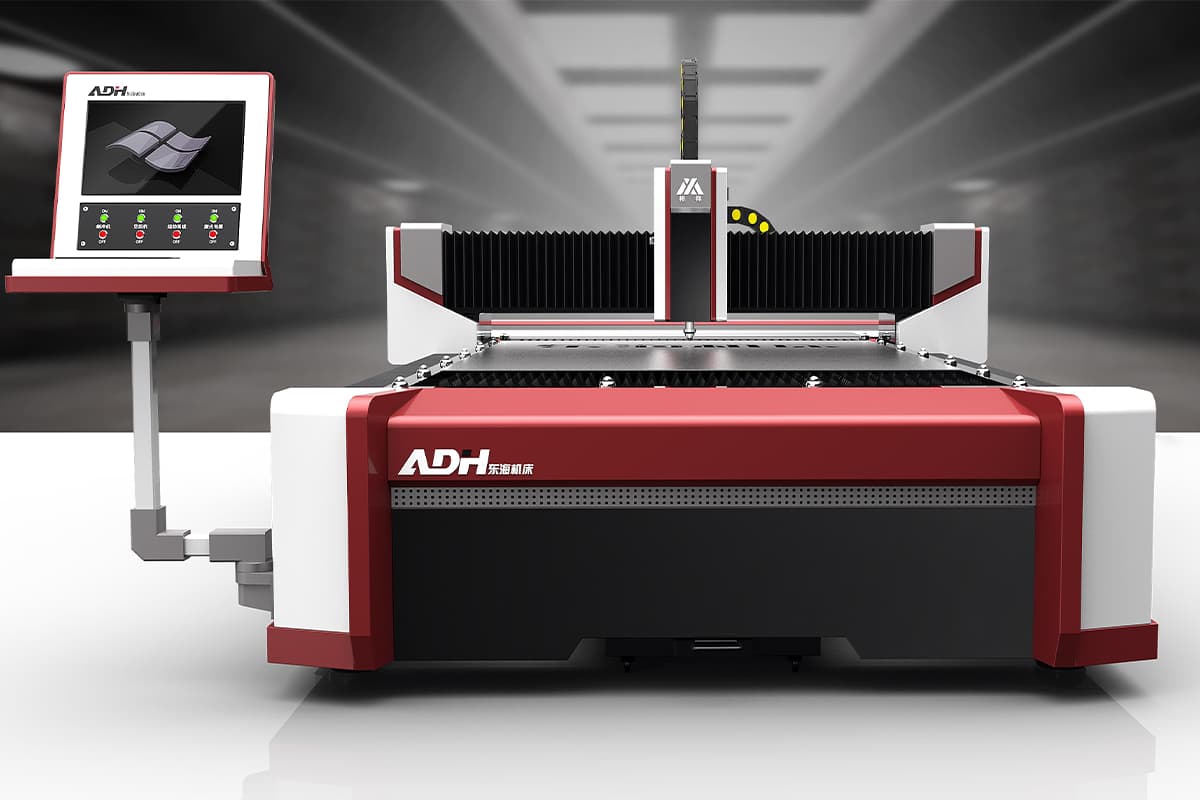

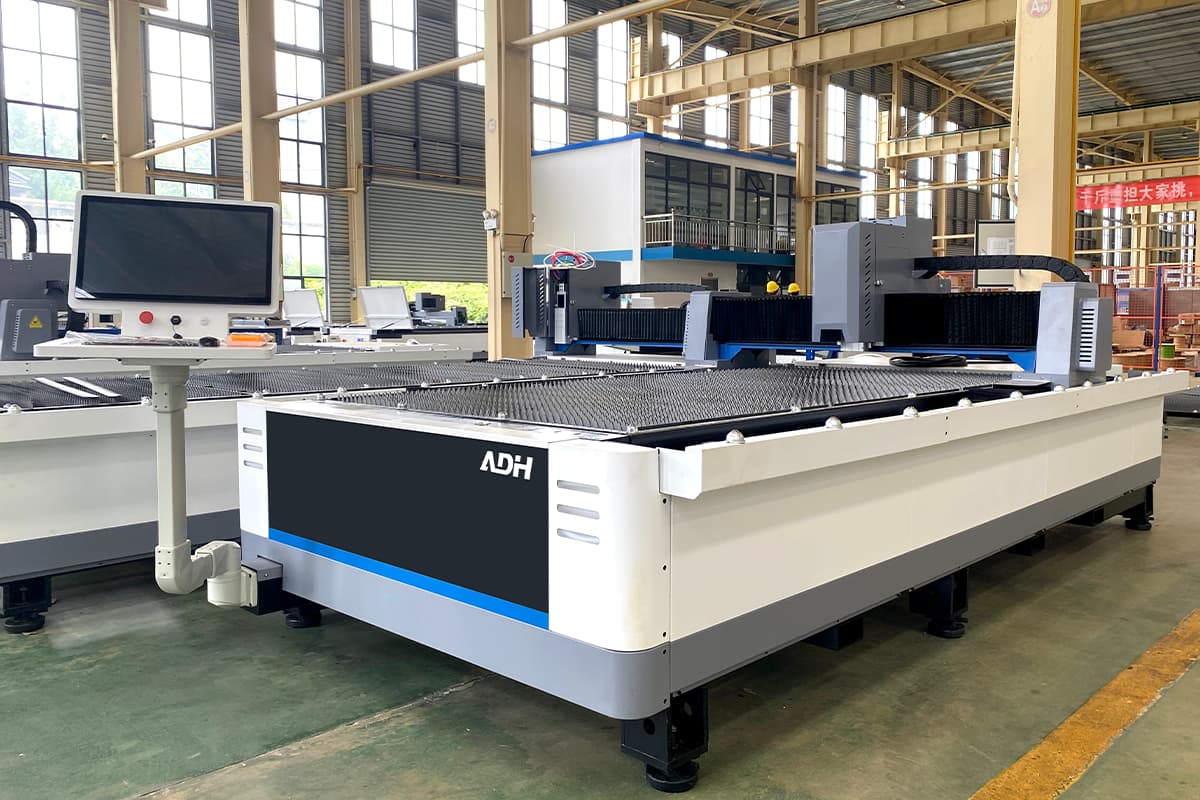

II. Understanding Laser Cutting Machines
1. Definition and Basic Principles
Laser cutting is a technology that uses a high-powered laser beam to cut materials with extreme precision. The term "LASER" stands for Light Amplification by Stimulated Emission of Radiation. In laser cutting, this concentrated beam of light is focused on a small area of the material, heating it to the point of melting or vaporization, thereby creating a cut.
The laser beam is typically controlled by a computer numerical control (CNC) system, allowing for intricate and repeatable cuts based on digital designs. This process is non-contact, meaning the cutting tool never physically touches the material, which can lead to cleaner cuts and less material deformation.
2. Types of Laser Cutting Machines
CO2 Lasers: These are the most common type of laser cutters. They use a gas mixture predominantly composed of carbon dioxide to generate the laser beam. CO2 lasers are versatile and can cut a wide range of materials, including wood, acrylic, textiles, and thin metals.
Fiber Lasers: These solid-state lasers use optical fibers doped with rare-earth elements to generate the laser beam. Fiber lasers are known for their high efficiency, low maintenance, and excellent performance in cutting reflective metals like copper and brass.
Nd:YAG Lasers: Neodymium-doped Yttrium Aluminum Garnet lasers are another type of solid-state laser. They are particularly effective for cutting and engraving metals and can be used in both pulsed and continuous wave modes.
3. Key Components of a Laser Cutting System
Laser Source: This is where the laser beam is generated. The type of laser source determines the wavelength and power of the beam.
Beam Delivery System: This includes mirrors and lenses that guide and focus the laser beam onto the cutting surface.
CNC Control System: The computer numerical control system directs the movement of the laser head or the cutting bed, ensuring precise execution of the cutting pattern.
Cutting Head: This component houses the focusing lens and often includes a nozzle for assist gas, which helps blow away molten material and protect the lens.
Motion System: This moves either the cutting head or the workpiece (depending on the machine design) to create the desired cut pattern.
Assist Gas System: Many laser cutters use assist gases like oxygen or nitrogen to improve cut quality and speed.
Cooling System: This maintains the optimal operating temperature for the laser source and other components.
Exhaust System: Removes fumes and small particles generated during the cutting process, ensuring a safe working environment.

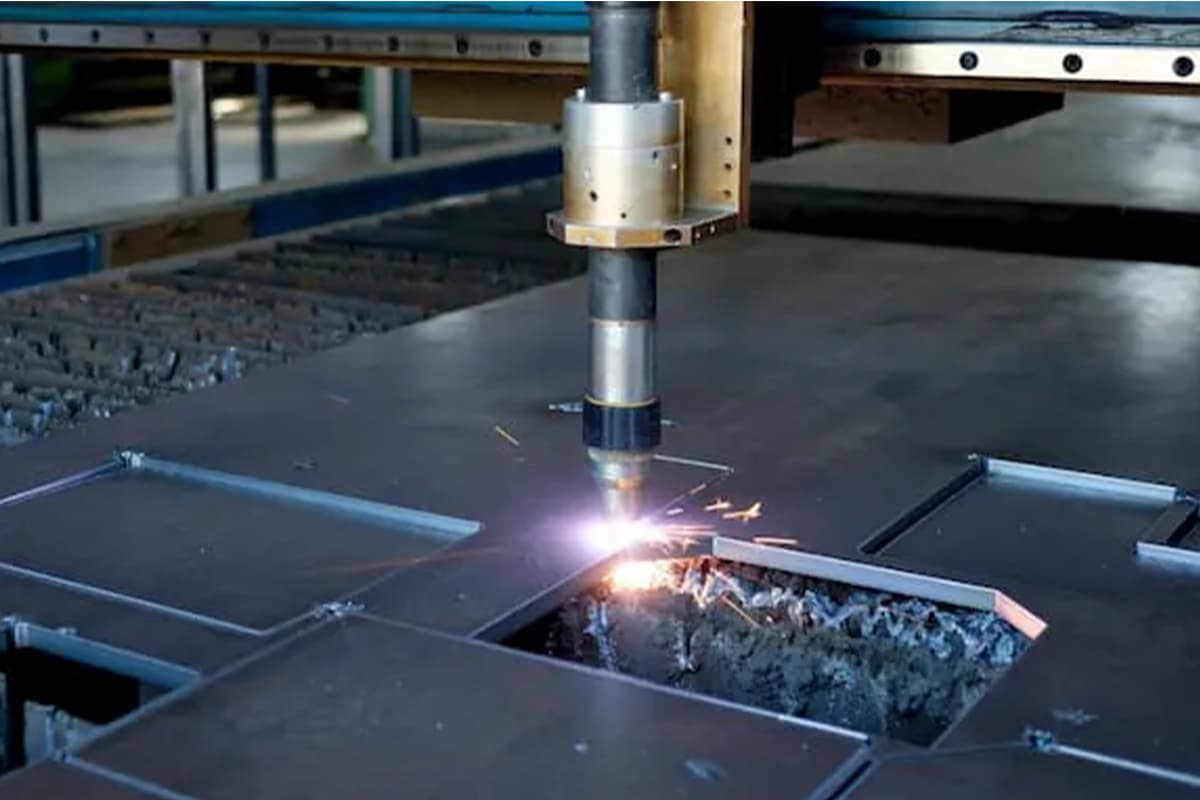

III. Understanding Plasma Cutting Machines
1. Definition and Basic Principles
Plasma cutting is a process that uses a high-velocity jet of ionized gas to cut through electrically conductive materials. The term "plasma" refers to the fourth state of matter, where gas becomes ionized and electrically conductive.
In plasma cutting, an electrical arc is formed between an electrode inside the torch and the workpiece. This arc heats the gas passing through the torch, turning it into plasma. The high-temperature plasma then melts the material, and the high-velocity gas jet blows the molten metal away, creating a cut.
2. Types of Plasma Cutting Machines
Conventional Plasma Cutters: These are the most basic and affordable plasma cutting systems. They use air as the plasma gas and are suitable for cutting mild steel, stainless steel, and aluminum up to about 1 inch thick.
High-Definition Plasma Cutters: These advanced systems use a constricted plasma arc and sophisticated torch designs to produce narrower kerfs and more precise cuts. They often use a mixture of gases to optimize cut quality and are capable of cutting thicker materials with better edge quality.

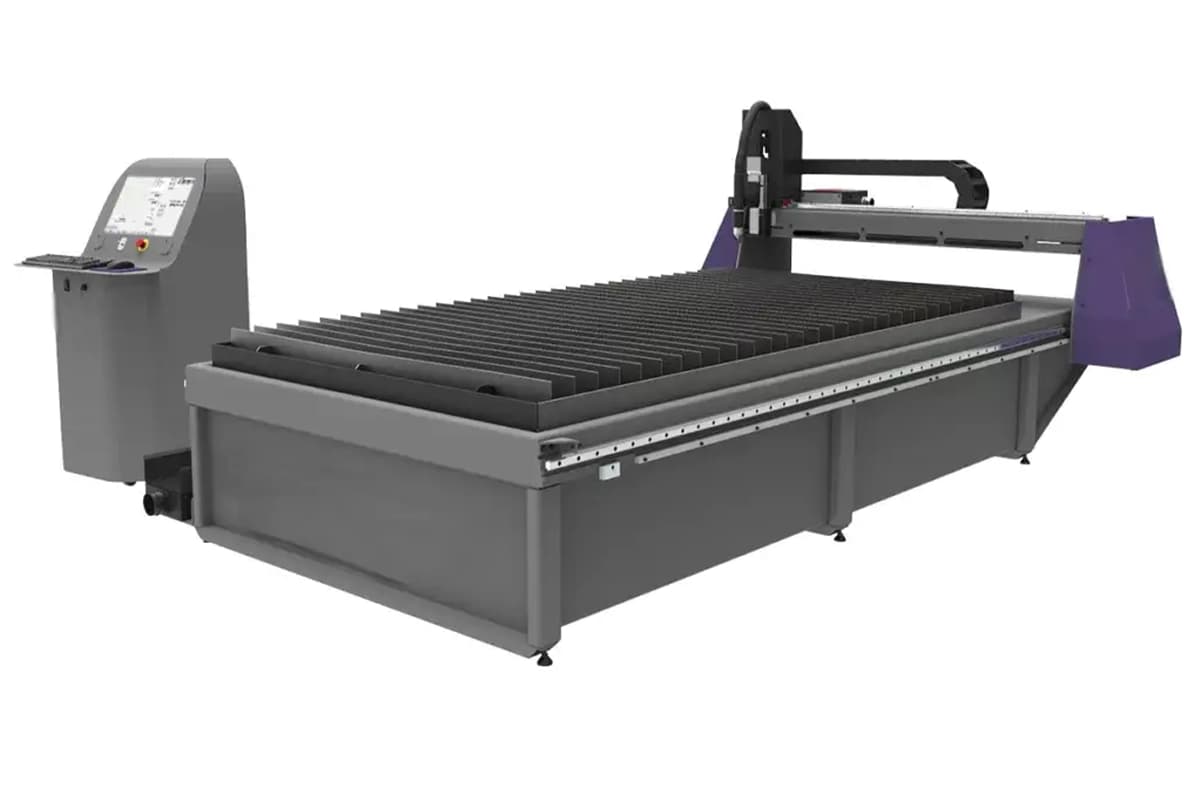

CNC Plasma Cutting Tables: These are automated systems that combine plasma cutting technology with computer numerical control. They allow for precise, repeatable cuts and are ideal for high-volume production environments.
Underwater Plasma Cutters: These specialized systems perform the cutting process underwater, which helps reduce noise, smoke, and ultraviolet radiation. They are often used in heavy-duty industrial applications.
3. Key Components of a Plasma Cutting System
Power Supply: This component provides the electrical current necessary to generate the plasma arc. It converts standard line voltage into the high-frequency, high-voltage electricity required for plasma generation.
Plasma Torch: The torch houses the electrode and nozzle. It's responsible for containing and directing the plasma arc.
Electrode: Usually made of copper with a hafnium or tungsten tip, the electrode conducts electricity from the torch to the workpiece, creating the arc necessary for plasma generation.
Nozzle: This component constricts and focuses the plasma arc, increasing its energy density and cutting effectiveness.
Gas Supply System: This system provides the gases necessary for plasma generation and sometimes includes secondary shielding gases to improve cut quality.
CNC Controller (for automated systems): In CNC plasma cutting tables, this component controls the movement of the torch or cutting table to execute precise cutting patterns.
Water Table or Downdraft Table: These are often used in CNC systems to catch molten metal and reduce smoke and fumes.
Consumables: These include the electrode, nozzle, and sometimes additional parts that wear out over time and need regular replacement.
IV. Key Differences Between Laser and Plasma Cutting Machines
1. Cutting Mechanism
Laser Cutting:Â Laser cutting uses a highly focused beam of light to melt, burn, or vaporize the material. This method allows for extremely precise cuts with minimal waste, making it suitable for detailed and complex shapes. The laser beam is guided by a computer, ensuring accuracy and repeatability.
Plasma Cutting:Â Plasma cutting utilizes a high-temperature plasma arc to melt the material and blow away the molten metal. This process is effective for cutting thicker metals quickly and efficiently. Plasma cutting can handle a variety of conductive materials, making it a versatile choice for industrial applications.
2. Material Compatibility
Laser Cutting:Â This technology is highly versatile, capable of cutting a wide range of materials including metals, wood, plastics, and ceramics. However, it is less effective on highly reflective materials like aluminum, as these can reflect the laser beam and reduce cutting efficiency. Typically excels in cutting thin to medium-thickness materials. CO2 lasers can cut up to 1 inch in mild steel, while fiber lasers can handle slightly thicker materials.
Plasma Cutting:Â Plasma cutting is primarily used for conductive metals such as steel, stainless steel, aluminum, and copper. It is not suitable for non-conductive materials like wood or plastics, limiting its use in certain industries. Shines when cutting thicker materials. High-definition plasma systems can cut steel up to 6 inches thick, with some specialized systems capable of even greater thicknesses.
3. Comparative Summary
Feature
Laser Cutting
Plasma Cutting
Cutting mechanism
Uses a beam to melt, burn, or vaporize material
Uses a high-temperature plasma arc to melt and blow away molten metal
Lower, suitable for quick cutting of thicker materials
Speed
Slower, but highly precise
Faster, especially for thick materials
Cost
High initial investment, suitable for large-scale production
Lower operating cost, suitable for medium-thickness materials
Heat affected zone
Small
Large
V. Detailed Comparison
1. Speed and Efficiency
Laser Cutting: Laser cutting machines excel in speed, particularly when working with thin materials (up to about 1/4 inch). The concentrated beam can quickly cut through the material with high precision, making it ideal for tasks that require intricate details and swift production. However, as the material thickness increases, the cutting speed decreases.
Plasma Cutting:Â Plasma cutters are generally faster than laser cutters when dealing with thicker materials, especially beyond 1/4 inch thickness. The high-temperature plasma arc can rapidly cut through thick metals, making it a preferred choice for heavy-duty industrial applications. The process is robust and less affected by material thickness compared to laser cutting.
2. Accuracy and Precision
Laser Cutting: Laser cutters are known for their exceptional accuracy and precision, with tolerances as tight as ±0.001 inches. The narrow laser beam allows for very fine cuts with a minimal kerf (the width of the cut), typically ranging from 0.004 to 0.02 inches, depending on the material and laser type, making it suitable for detailed and complex designs. This precision is especially valuable in industries where tight tolerances are critical.
Plasma Cutting: Plasma cutting tends to have a larger kerf compared to laser cutting, usually between 0.05 to 0.25 inches, depending on the system and material thickness. While it provides good accuracy, it is not as precise as laser cutting, particularly for intricate work. Typical tolerances are around ±0.02 inches. This method is more suited for applications where high precision is not the primary concern.
3. Setup and Changeover Time
Laser Cutting: Often requires less setup time, especially for varied jobs. Changing between different materials or thicknesses usually involves minimal adjustments.
Plasma Cutting: May require more setup time, particularly when switching between significantly different material thicknesses or types. Consumable changes can also add to setup time.
4. Energy Consumption
Laser Cutting: Typically more energy-efficient, especially fiber lasers. However, high-powered lasers for thick materials can consume significant energy.
Plasma Cutting: Generally consumes more energy, particularly for high-powered systems capable of cutting very thick materials.
5. Cost Analysis
Initial Investment:Â The initial investment for laser cutting equipment is generally higher than that for plasma cutting. Laser cutters require advanced technology and precise components, which contributes to the higher cost.
Operational Costs:Â Plasma cutters are typically less expensive to operate and maintain compared to laser cutters. The consumables used in plasma cutting, such as electrodes and nozzles, are relatively cheaper than the components required for laser cutting.
Maintenance Requirements: Laser cutting typically requires less frequent maintenance, especially fiber lasers. However, when maintenance is needed, it can be more complex and expensive. Plasma cutting requires more frequent maintenance due to consumable wear, but maintenance tasks are often simpler and less expensive.
6. Applications
Laser Cutting:Â Laser cutting is widely used in industries like electronics, medical devices, and aerospace, where precision and the ability to work with a variety of materials are crucial. It is also popular for creating intricate designs and fine detailing.
Plasma Cutting:Â Plasma cutting is commonly used in industrial fabrication, automotive repair, and construction. Its ability to cut thick metals quickly makes it ideal for heavy-duty applications where speed and efficiency are important.
7. Safety and Environmental Impact
Laser Cutting:Â While laser cutting is generally safe, there are potential hazards associated with laser radiation, which requires appropriate safety measures such as protective eyewear and proper machine enclosures. Additionally, some materials can emit toxic fumes when cut with a laser, necessitating adequate ventilation and respiratory protection.
Plasma Cutting:Â Plasma cutting can produce hazardous fumes and radiation, necessitating proper ventilation and protective gear for operators. The process also generates noise, which may require hearing protection. Proper training and adherence to safety protocols are essential to mitigate these risks.
VI. Advantages and Disadvantages
Laser Cutting
Advantages:
Precision:Â Laser cutting offers unparalleled precision, capable of producing intricate and detailed cuts. This is especially beneficial for industries requiring high-quality finishes and complex shapes.
Versatility:Â The ability to cut a wide range of materials, including metals, plastics, wood, and ceramics, makes laser cutting a versatile choice for various applications.
Smooth Cuts:Â The laser beam creates smooth edges with minimal burring, reducing the need for additional finishing processes.
Disadvantages:
Higher Cost:Â The initial investment and operational costs for laser cutting equipment are generally higher than those for plasma cutting. This includes the cost of the laser source and maintenance of precision components.
Limited Effectiveness on Reflective Materials:Â Laser cutting can struggle with highly reflective materials, such as aluminum, which can reflect the laser beam and reduce cutting efficiency.
Plasma Cutting
Advantages:
Cost-Effective:Â Plasma cutters typically have a lower initial cost and are cheaper to maintain compared to laser cutters. The consumables are less expensive, making it a cost-effective solution for many industrial applications.
Handles Thicker Materials:Â Plasma cutting is particularly effective for cutting thick metals, providing a quick and efficient solution for heavy-duty tasks.
Disadvantages:
Lower Precision:Â Compared to laser cutting, plasma cutting has a larger kerf and is less precise, making it less suitable for detailed work requiring fine tolerances.
Limited to Conductive Materials: Plasma cutting is restricted to conductive materials, limiting its use in applications involving non-metallic materials like plastics and wood.
VII. FAQs
1. What is the best cutting method for thick metals?
Plasma cutting is generally considered the best method for cutting thick metals due to its ability to handle a wide range of conductive metals with greater speed and efficiency.
2. How do the operational costs compare between laser and plasma cutting?
Plasma cutting typically has lower operational costs compared to laser cutting. The consumables used in plasma cutting, such as electrodes and nozzles, are relatively inexpensive. In contrast, laser cutting requires more expensive components and maintenance, particularly for high-powered laser systems. Additionally, the energy consumption for laser cutting can be higher, further increasing the operational costs.
3. Are there safety concerns with using plasma cutters?
Yes, there are several safety concerns associated with using plasma cutters. The process generates high levels of heat, which can cause burns or fires if not properly managed. Plasma cutting also produces hazardous fumes and gases, which can pose respiratory risks to operators. Proper ventilation, protective clothing, and eye protection are essential to ensure safety. Additionally, the process generates noise, so hearing protection may be necessary.
VIII. Conclusion
In this article, we discussed the differences between laser cutting machines and plasma cutting machines. Laser cutting machines offer high precision and are ideal for intricate patterns and thin metals. In contrast, plasma cutting machines are better suited for thicker metals with faster speeds and lower costs.
Choosing the right machine depends on your specific needs and budget. At ADH Machine Tool, we have over 20 years of experience in fiber laser cutting. Visit our website or contact our team for more information. We are here to serve you.
