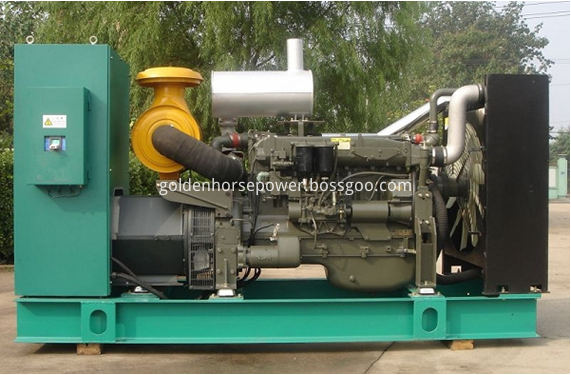

The Main Technical parameter of Silent series Diesel Generator sets:
1. Rated Power(KW/KVA): 150/187
2. Rated Voltage(V) : 400/230 or 220/127
3. Rated Currency(A): 270
4. Rated Frequency(HZ): 50/60
5. Retad Speed(rpm);1500/1600
6. Rated Power Factor: 0.8(lag)
7. Phase Arragement: 3 phase 4 wire
8. Fuel Consumption(g/kwh): 196
Engine Technical:
1.Type: WD618
2. 12h Power/Standby Power(KW): 165/206
3. Starting Mode: DC 24V Electrical Starting
4. Speed Regulation Mode: Mechnical/Electrical
Alternator Parameter:
1. Type: Stamford /Marathon/Xingnuo
2. Rated Power(KW): 150
3. Excitation Mode: AVR Bruchless Excitation With AVR
4. Insulation Class: H (Temperature Rise Limit:125K
5. Protection Class: IP22
6. Control Unit Type: Integral Typ
Steyr Diesel Generator,UCI 274 Stamford Alternator,200 Horsepower Steyr Generator Weifang Jinma Diesel Engine Co.,Ltd , http://www.goldenhorsepower.com
Quick Details:
1. Capacity Volume:4CBM
2. Horse Power:99HP
3. GVW.:6495kg
4. Overall Dimensions:5995*2000*2500mm
5. Transport Medium:sewage.sewerwater,fecal
Equipment:
Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,Â
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min
Â
Technique Parameters
Description
Dongfeng 4X2 Mini Vacuum Sewage Suction Truck
Drive Model
4X2
Chassis
EQ1060
Number of axles
2
Vehicle Main Dimensions
Dimensions(L x W x H)(mm)
5995×2000×2550
Wheel base (mm)
3300
Overhang (front/rear) (mm)
1032/1663
Wheel track (front/rear) (mm)
1506/1466
Approach/Departure angle(°)
19/14
Weight in KGS
GVW.
6495kg
Curb Weight
4200kg
Max. driving speed(km/h)
90
Engine
Model
CY4102-C3F
Type
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
99HP
engine capacity(ml)
3856
Emission standard
Euro III
Gearbox
5 forwards & 1 reverse
Clutch
Reinforced diaphragm clutch
Steering Gear
Power steering, hydraulic steering with power assistance
Fuel tank (L)
100
Tire
7.00-16 tire , 6 + 1(spare)
Brakes
dual circuit compressed air brake
Tank
Material
Q235A Carbon steel
Medium Density
800kg/m³
Loading Capacity (m³)
4
Overall dimensions(mm)
3200×1100×1100
Thickness(mm)
5
Standard
Equipment
 Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,Â
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min

Company Information  Â
Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks. Â
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON and etc. Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.
   Â
FAQ
Q:What is your payment term?
A:We accept payment by T/T,L/C.
Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets
Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.
Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!
Chengli Special automobile Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Dongfeng 4X2 Mini Vacuum Sewage Suction Truck
Quick Details:
1. Capacity Volume:4CBM
2. Horse Power:99HP
3. GVW.:6495kg
4. Overall Dimensions:5995*2000*2500mm
5. Transport Medium:sewage.sewerwater,fecal
Equipment:
Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,Â
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min
Â
Technique Parameters
Description
Dongfeng 4X2 Mini Vacuum Sewage Suction Truck
Drive Model
4X2
Chassis
EQ1060
Number of axles
2
Vehicle Main Dimensions
Dimensions(L x W x H)(mm)
5995×2000×2550
Wheel base (mm)
3300
Overhang (front/rear) (mm)
1032/1663
Wheel track (front/rear) (mm)
1506/1466
Approach/Departure angle(°)
19/14
Weight in KGS
GVW.
6495kg
Curb Weight
4200kg
Max. driving speed(km/h)
90
Engine
Model
CY4102-C3F
Type
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
99HP
engine capacity(ml)
3856
Emission standard
Euro III
Gearbox
5 forwards & 1 reverse
Clutch
Reinforced diaphragm clutch
Steering Gear
Power steering, hydraulic steering with power assistance
Fuel tank (L)
100
Tire
7.00-16 tire , 6 + 1(spare)
Brakes
dual circuit compressed air brake
Tank
Material
Q235A Carbon steel
Medium Density
800kg/m³
Loading Capacity (m³)
4
Overall dimensions(mm)
3200×1100×1100
Thickness(mm)
5
Standard
Equipment
 Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,Â
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min
Â
Company Information  Â
Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks. Â
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON and etc. Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.
   Â
FAQ
Q:What is your payment term?
A:We accept payment by T/T,L/C.
Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets
Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.
Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!
Chengli Special automobile Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
